Technical Specification
| Model | TL-3006D | TL-3025D | TL-3025Q | TL-3120D |
|---|
| Axis | 2-axis | 2-axis | 4-axis | 2-axis |
| Measurement range | 0.03~6mm | 0.2~25mm | 0.2~25mm | 0.8~120mm |
| Repeatability | ±0.03μm(1) | ±0.1μm(2) | ±0.1μm(2) | ±0.3μm(3) |
| Accuracy | ±0.5μm(4) | ±2μm(5) | ±2μm(5) | ±5μm(6) |

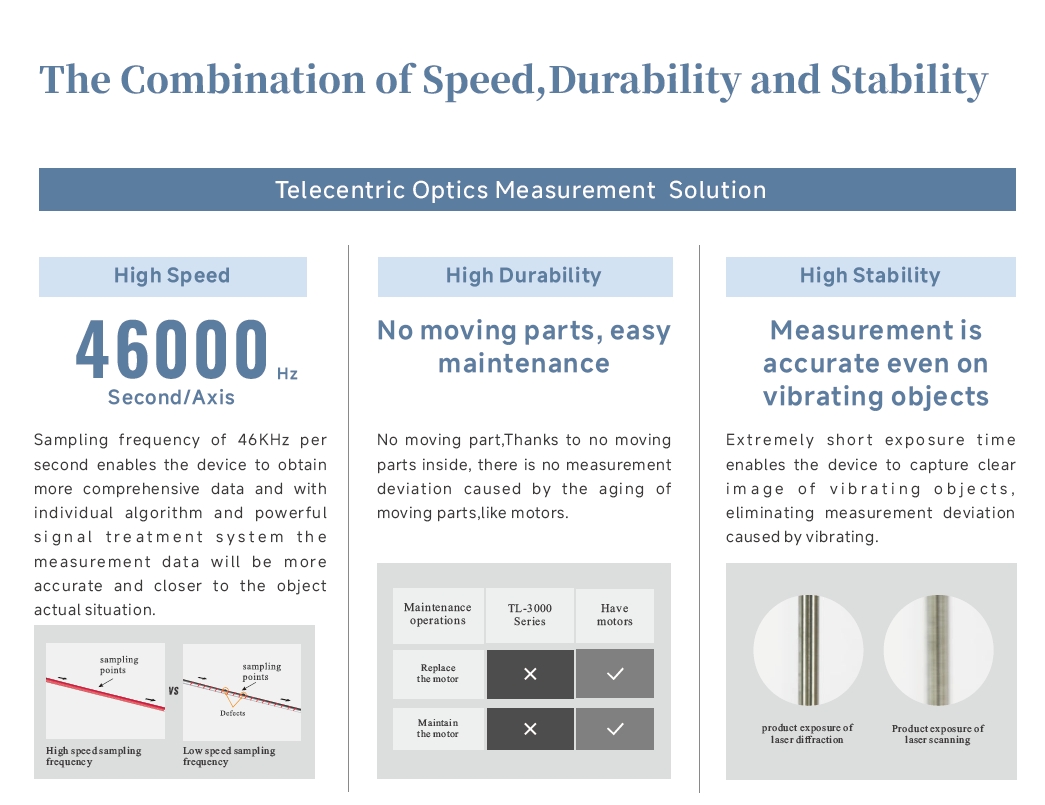

| Sampling frequency | 46KHz/Axis | 46KHz/Axis | 46KHz/Axis | 20KHz/Axis |
| Size(L*W*H) | 180*198*60mm | 270*296*60mm | 380*380*68mm | 507*492*65mm |
| Application | round wire, flat wire, transparent wire, hose and bar etc. |
| Measurement data | diameter, ovality, width ,thickness ,lumps and necks |
| Power supply | 24V ±5%,Max. 75W |
| Display | LED |
| Communication interface | Standard:RS485 MODBUS RTU,CAN,WIFI Option:PROFIBUS,PROFINET,EtherNet/IP,EtherCAT,etc. |
| Electrical port | Default:Digital output (relay), Digital input,Analog input encoder
pulse input port. Option: PI feedback control, Analog output(7) |
| Environmental adaptability | Working Tem. | 0~50℃ |
| Working Env. | 20~85%RH(No condensation) |
| Brightness | incandescent light, fluorescent lamp 3000lx or less |
| Vibrating resistance | 10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours |
| Impact resistance | 10G/6ms |
| IP grade | IP65 |
| Data collection analysis | DMS1000 measurement software system,DS14 ZT display and control
system |
| Out-of-tolerance alar | Support |
| Transparent mode | Support |
NOTE:
(1)Set average number of times to 1150 and measure the ±2σ value of
the round standard rod of diameter 10mm at the measurement area
center.
(2)For object diameter of 10mm, the measurement accuracy is ±2um
when it moves in the center of 8*8mm；
(3)PI feedback control and analog out options shall be ordered at
placing device order.
(4) Move φ1mm round rod in the measurement area of 2*2mm and
conduct measurement error;
(5) Move φ10mm round rod in the measurement area of 8*8mm and
conduct measurement error;
(6) Move φ40mm round rod in the measurement area of 40*40mm and
conduct measurement error;
(7) Industrial communication module and PI feedback control module
is installed before ex-factory,so notify the demand before placing
an order.
