Straightforward Laser Scanning Gauge Device High Precision Measuring Micrometer

Ask Lasest Price
Brand Name :	Screate DALA
Model Number :	N3
Price :	Negotiable
Payment Terms :	T/T, etc.
Delivery Time :	7 - 15 working Days

Add to Cart

Product Details
Company Profile

Straightforward Laser Scanning Gauge Device High Precision Measuring Micrometer

High Accuracyand ,Long Durability

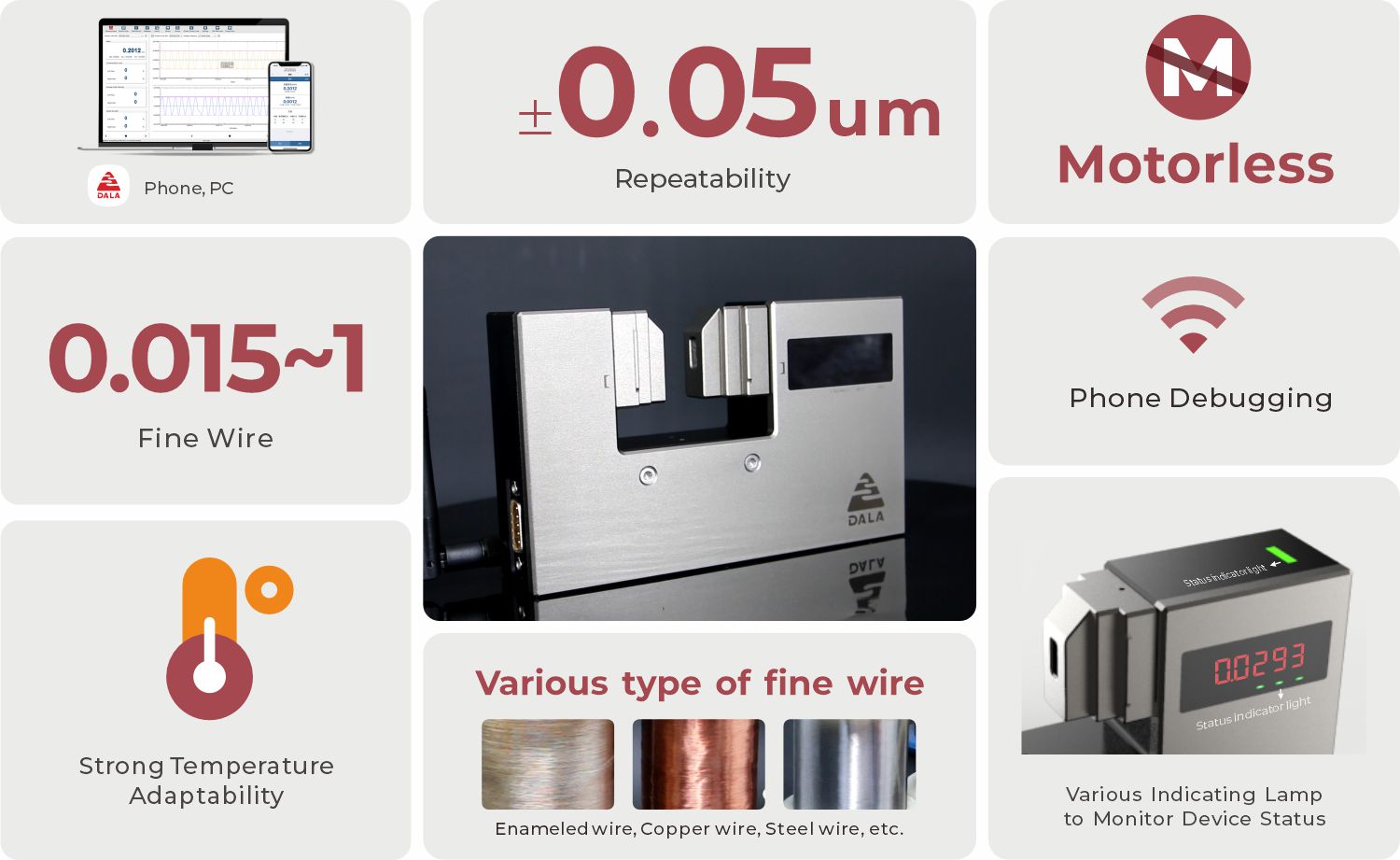

The N3 fine wire laser micrometer series uses laser diffraction measurement technology, characterized by its simple yet extremely accurate design. Its lack of an internal motor and compact form factor make it easy to maintain over time.

When measuring fine wires, the precision improves as the wire diameter decreases. This device offers a remarkable repeatability of ±0.05 µm, guaranteeing precise and accurate measurements.

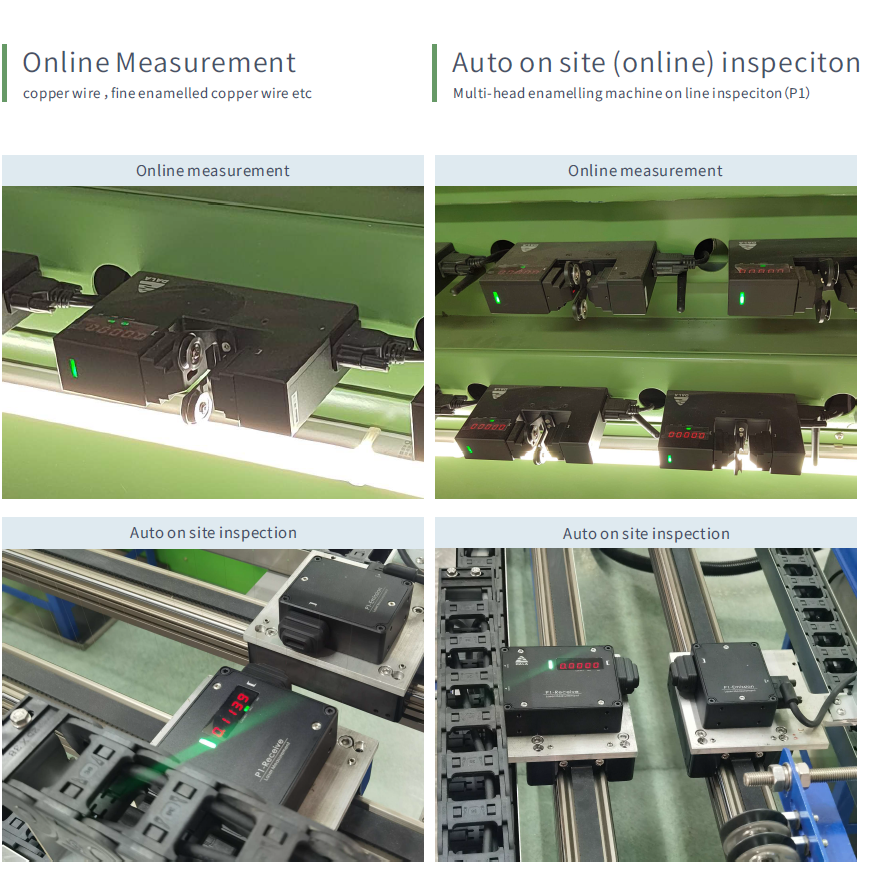

It is applicable to the measurement of various fine copper wires, enamelled copper wire,tungsten wire and steel wire.,etc.

Maintenance free

Thanks to the absence of motor-driven diffraction technology, maintenance is greatly simplified with no need for motor maintenance or replacement.

Application

Touch Screen,Computer,Cellphone

The DALA N3 can be conveniently managed via computer and cellphone, allowing for tasks such as parameter settings, measurement data management, and more.

Technical Specification

Model	N3
Axis	1-axis
Measurement data	diameter
Measurement range	0.015~1mm
Repeatability	±0.05μm
Accuracy	±(0.00012+0.03%*D)mm
Size	1453488mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging)
Data colletion & analysis	available(DMS1000)
Out-of-tolerance alarm	available
Far-end display function	available
