2 Axis Laser Diameter Controller Gauge Measuring Machine For Fine Wire

Ask Lasest Price
Brand Name :	Screate DALA
Model Number :	E2
Price :	Negotiable
Payment Terms :	T/T, etc.
Delivery Time :	7 - 15 working Days

Add to Cart

Product Details
Company Profile

2 Axis Laser Diameter Controller Gauge Measuring Machine For Fine Wire

E2 Laser micrometer gauge,High precision and long durability

The DALA fine wire laser micrometer series is distinguished by its utilization of laser diffraction measurement technology, celebrated for its simplicity and remarkable accuracy. Its motor-free design ensures easy maintenance and compactness, making future upkeep hassle-free.

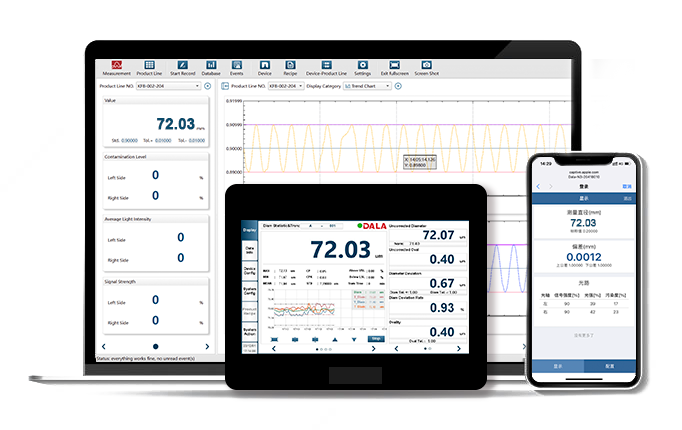

Computer,Touch Screen,Cellphone

DALA E2 can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,

Technical Specification

Model	E2
Axis	2-axis
Measurement data	diameter,ovality
Measurement range	0.03~2mm
Repeatability	±0.0001mm
Accuracy	±(0.00024+0.06%*D)mm
Size	17641136mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	RS485(Mod bus RTU),CAN(CAN open),WIFI(for data debugging)
Data colletion & analysis	available(option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Far-end display function	available
