Non Contact Laser Length Measurement Tools Distance Device 8W

Ask Lasest Price
Brand Name :	Screate DALA
Model Number :	DLS600
Price :	Negotiable
Payment Terms :	T/T, etc.
Delivery Time :	7 - 15 working Days

Add to Cart

Product Details
Company Profile

Non Contact Laser Length Measurement Tools Distance Device 8W

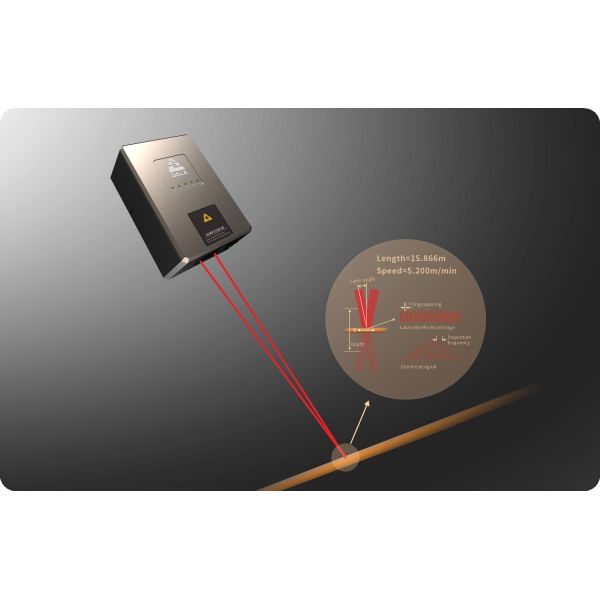

High Accuracy Non contact, No calibration

DALA's non-contact speed and length measurement device is designed for ojbect speed and length measurement.It also can be used to trace defects location with lump and neck measuement devices.

It is applicable to measure the speed and length of materials, like wire &cable , sheeting, pipes, and tubes etc.

The device supports multiple communication protocols compatible with Industry 4.0, including Modbus, WiFi, PROFINET, PROFIBUS, Ethernet/IP, Modbus TCP/IP, and CAN.

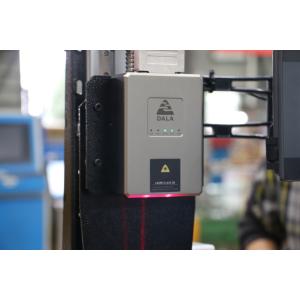

Application

HMI display and control system

The HMI is a touch screen interface that communicates with the length meter via RS485, allowing for parameter setting, data display, storage, statistical analysis, and device updates.

Customers can monitor the speed and length of moving objects and export the collected data.

Accessories

Technical Specification

Model	DLS600
Min speed(m/min)	0.5
Max speed(m/min)	2000
Standard measurement distance(mm)	580(±30mm)
Depth(mm)	±30
Accuracy(%)	±0.05
Repeatability(%)	±0.02
Max. acceleration(m/s²)	500
Measurement update time	20us
Working power	24VDC/8W
Environmental protection level	IP56
Working temperature	5-45℃(Protection case is available for higher temperature)
Size(LWHmm)	150 * 100 * 59
Laser beam diameter( mm)	3
Laser Class	3B
Pulse output	2X pulse output or 1X quadrature output, programmable, pulse speed rate less than 1M Hz
Digital input	Shutter enable
Digital output	2 programmable output
Standard communication port	RS-485(Modbus RTU)
Communication port options	PROFINET,PROFIBUS,Ethernet/IP,DeviceNet
Display communication	RS-485(Modbus RTU)
