3D Drawing Die Measurement Equipment Multi Axis DM600S

A high-end device capable of measuring bearing asymmetry

Pushing the boundaries of innovation, the DM600S stands as DALA's pinnacle in 3D die profile measurement. Harnessing the latest in optical imaging technology, it sets a new standard for precision and performance.

This instrument measures bearing length,reduction cone angle ,diameter and ovality and bearing asymmetry.

Easy to Operate

Operator can monitor the surface of dies(suchas breakage, dust )on screen.Powerfulvisibility of result displaying

area makes it ispossible to check data at a distance.

High efficiency and accuracy

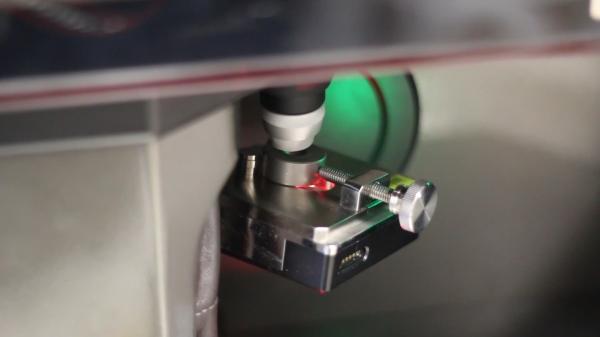

The software is very easy to operate. Fix the die on the holder, then single press start button to conduct measurement . The single
profile measurement time is 8 seconds and 4-axis asymmetry measurement time is about 24 seconds . The operator doesn't need any
computer professional knowledge to fulfil the measurement .

Measurement Report

Parameters

Objectives	2D measurement range	3D measurement range
20X	0.015~0.060mm(0.00059~0.0024 inch)	0.020~0.030mm(0.00079~0.00118 inch)
10x	0.030~0.450mm(0.00118~0.0177 inch)	0.030~0.110mm(0.00118~0.0043 inch)
3X	0.110~1.600mm(0.0044~0.0630 inch)	0.110~0.800mm(0.0043~0.0315 inch)
1X	0.350~5.000mm(0.0138~0.1969 inch)	0.400~4.500mm(0.0157~0.1772 inch)
0.5X	0.70~10.000mm(0.02756~0.3937 inch)	0.800~9.000mm(0.0315~0.3543 inch)

For more information , please contact us
