    3D Profile Drawing Die Measurement Cable Measuring Machine

    Ask Lasest Price
    Brand Name : Screate DALA
    Model Number : DM500S
    Price : Negotiable
    Payment Terms : T/T, etc.
    Delivery Time : 7 - 15 working Days
    • Product Details
    • Company Profile

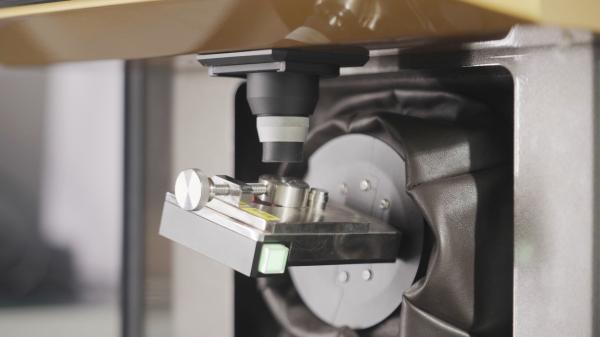

    3D Profile Drawing Die Measurement Cable Measuring Machine

    Wire Drawing Die 3D Profile Measurement Instrument

    The DM500S stands as DALA's pinnacle in 3D die profile measurement series, engineered with state-of-the-art optical imaging technology.




    Easy to Operate

    Operator can monitor the surface of dies(suchas breakage, dust )on screen.Powerfulvisibility of result displaying
    area makes it ispossible to check data at a distance.

    Drawing die measurement report


    Parameters


    Objectives2D measurement range3D measurement range
    20X0.015~0.060mm(0.00059~0.0024 inch)0.020~0.030mm(0.00079~0.00118 inch)
    10x0.030~0.450mm(0.00118~0.0177 inch)0.030~0.110mm(0.00118~0.0043 inch)
    3X0.110~1.600mm(0.0044~0.0630 inch)0.110~0.800mm(0.0043~0.0315 inch)
    1X0.350~5.000mm(0.0138~0.1969 inch)0.400~4.500mm(0.0157~0.1772 inch)
    0.5X0.70~10.000mm(0.02756~0.3937 inch)0.800~9.000mm(0.0315~0.3543 inch)
    0.25X1.00~20.00mm(0.03937~0.78740inch)2.00~20.00mm(0.0787~0.78740inch)
    0.1X4.00~45.000mm(0.15748~1.7716inch)8.000~45.000mm(0.31496~1.7716inch)

    For more information , please contact us
