Technology of Simple Structure, Long Durability

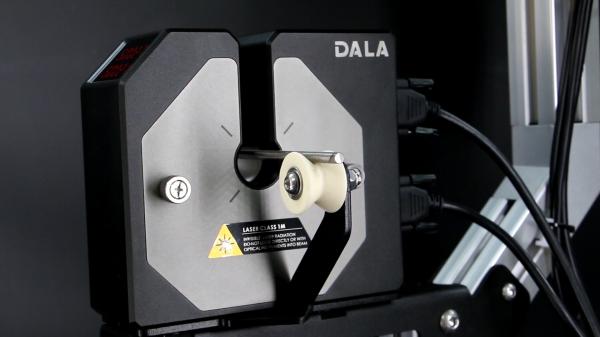

F2010-S employs the laser diffraction measurement method, renowned
for its streamlined design and unparalleled precision.
There is no motor inside, besides, the smart size and simple
structure allows easy maintenance work at the later stage.
It is suitable for measuring electric wires and cables, steel
wires, enameled copper wires, medical tubing, 3D filaments, and
both transparent and opaque objects.
HD LED display, easy for reading
HD LED display with adjustable display direction ,easy to read
measurement result from different view.
Touch Screen,Computer,Cellphone
F2010-S can be managed by computer ,cellphone and touch screen,like
parameter setting ,measurement data management ,
and so on,customers can choose as their application request.
Technical Specification
| Model | F2010-S |
|---|
| Axis | 2-axis |
| Measurement data | diameter and ovality |
| Frequency | 1000Hz/axis |
| Measurement range | 0.2~10mm |
| Repeatability(1) | ±0.1μm |
| Accuracy(2) | ±(0.0005+0.01%*D)mm |
| Size | 155*140*58mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT PI FEEDBACK CONTROL(3) |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of
φ1mm round rod at measurement center area;
(2) set sliding window as 100ms, outside diameter deviation of φ1mm
round rod at measurement area;
(3) PI feedback control is option, but must order at placing order
