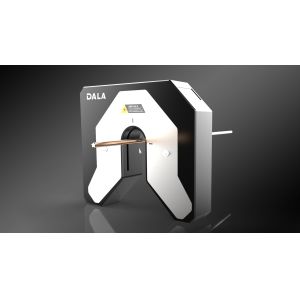

Laser Cable Diameter Ovality Measurement Instruments Tool 24V

Long Durability

The F2030-S uses laser diffraction measurement technology, recognized for its simple design and high precision.

Its lack of moving parts ensures long-term accuracy and eliminates the need for calibration.

This device is ideal for measuring electric cables, steel wires, hoses, and pipes.

Applications

Touch Screen,Computer,Cellphone

DALA F2030-S can be managed by computer ,cellphone and touch screen,like parameter setting ,measurement data management ,
and so on.

Technical Specification

Model	F2030-S
Axis	2-axis
Measurement data	diameter and ovality
Frequency	2000Hz (1000Hz/axis)
Measurement range	0.5~30mm
Repeatability⁽¹⁾	±0.2μm
Accuracy⁽²⁾	±(0.001+0.01%*D)mm
Size	28024558mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT
Electrical port	Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ⁽³⁾
Data colletion & analysis	available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Transparent mode	available

Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area
(3) PI feedback control is option, but must order at placing order
