Cable Diameter Controller Laser Micrometer Ovality Measurement Gauge Tool

Ask Lasest Price
Brand Name :	Screate DALA
Model Number :	D360
Price :	Negotiable
Payment Terms :	T/T, etc.
Delivery Time :	7 - 15 working Days

Add to Cart

Product Details
Company Profile

Cable Diameter Controller Laser Micrometer Ovality Measurement Gauge Tool

High Accuracy and Long Durability

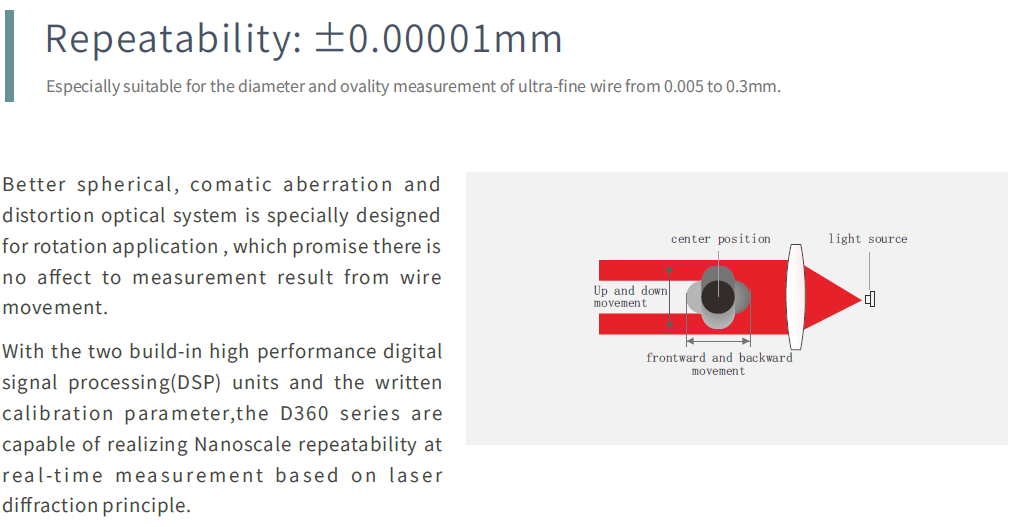

D360 fine wire laser micrometer series employs laser diffraction measurement technology, noted for its efficient design and high precision.

Its motor-free construction ensures a compact and simple setup, greatly easing maintenance. This series is ideal for measuring fine copper wire, enameled copper wire, tungsten wire, steel wire, and other similar materials.

long durability,The environment is adaptable

Technical Specification

Model	D360-1003R(diameter&ovality) D360-1003(diameter)	D360-101R(diameter&ovality) D360-101(diameter)
Axis	1-axis	1-axis
Measurement data	diameter,Ovality	diameter,Ovality
Measurement range	0.005~0.3mm	0.015~1.0mm
Repeatability	±0.01um	±0.04um
Accuracy	±(0.00003+0.03%*D)mm	±(0.0001+0.03%*D)mm
Size	27751112.5mm(Without rotation lamping ) 277185112.5mm	22751112.5mm(Without rotation lamping ) 227185112.5mm
Working power source	24V ±10% 40VA
Working temperature	0℃~40℃
Storage temperature	0℃~60℃
Relative humidity	Maximum 85%, no condensation
Display	LCD display
Commuincation port	RS485

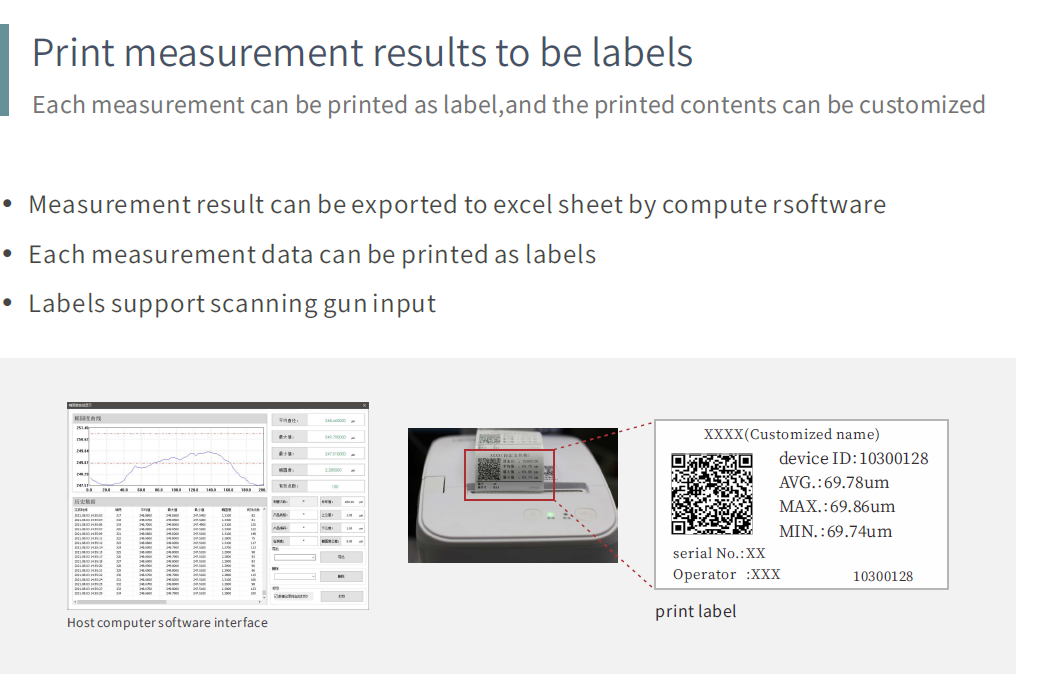

Data colletion & analysis	Support
Calibration method	automatic calibration
