    OEM Drawing Die Measurement Multi Axis Laser Micrometer

    Ask Lasest Price
    Brand Name : Screate DALA
    Model Number : DM600S
    Price : Negotiable
    Payment Terms : T/T, etc.
    Delivery Time : 7 - 15 working Days
    • Product Details
    • Company Profile

    OEM Drawing Die Measurement Multi Axis Laser Micrometer

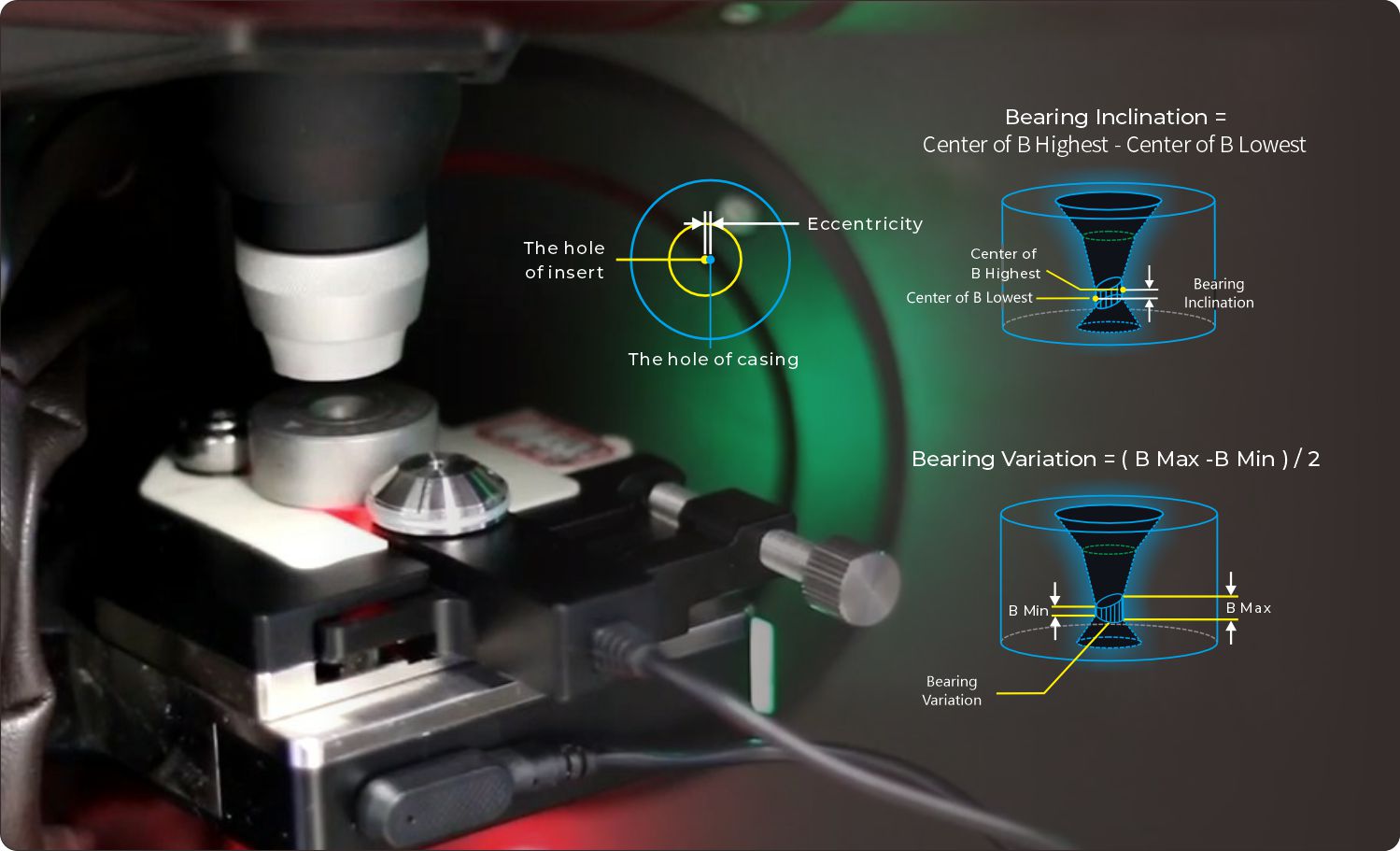

    A high-end device capable of measuring bearing asymmetry


    DM600S is DALA's advance 3D die profile measurement series based on the cutting-edge optical imaging technology.
    This instrument measures bearing length,reduction cone angle ,diameter and ovality and bearing asymmetry.

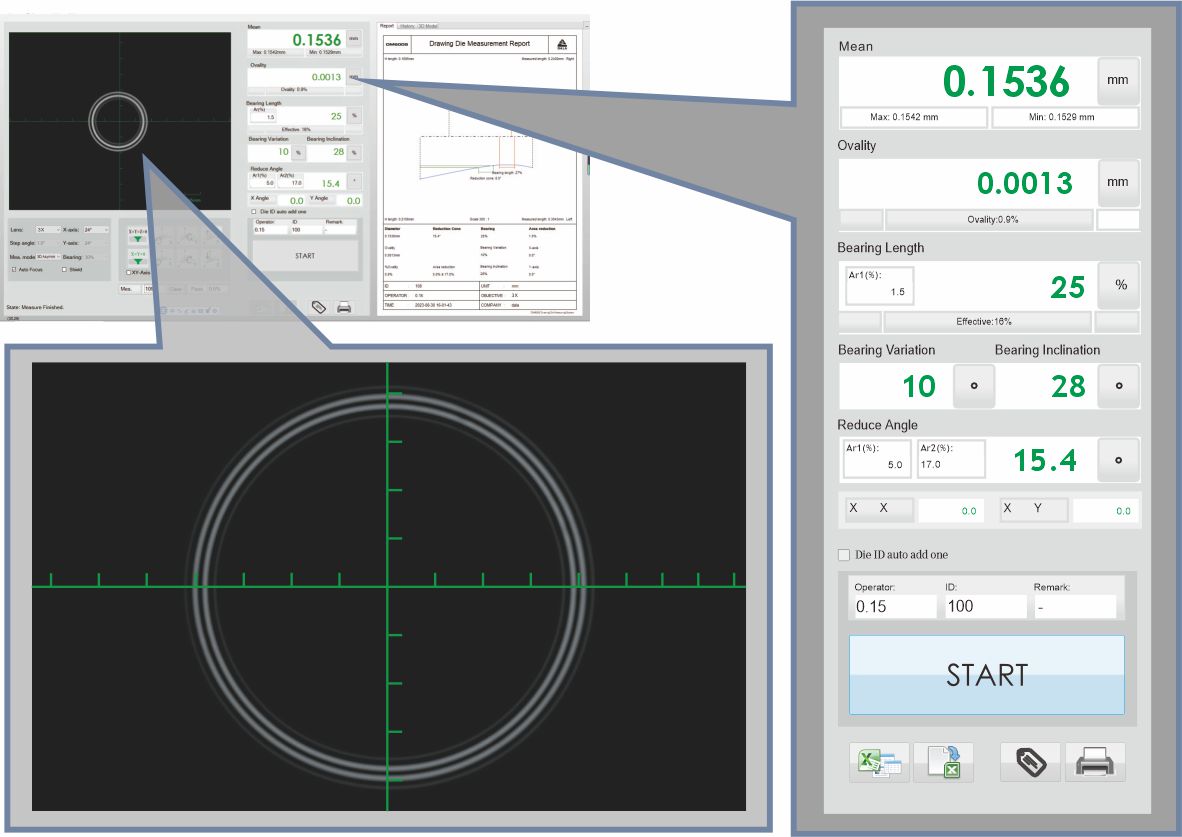

    Easy to Operate

    Operator can monitor the surface of dies(suchas breakage, dust )on screen.Powerfulvisibility of result displaying
    area makes it ispossible to check data at a distance.


    High efficiency and accuracy

    The software is very easy to operate. Fix the die on the holder, then single press start button to conduct measurement . The single
    profile measurement time is 8 seconds and 4-axis asymmetry measurement time is about 24 seconds . The operator doesn't need any
    computer professional knowledge to fulfil the measurement .

    Measurement Report


    Parameters


    Objectives2D measurement range3D measurement range
    20X0.015~0.060mm(0.00059~0.0024 inch)0.020~0.030mm(0.00079~0.00118 inch)
    10x0.030~0.450mm(0.00118~0.0177 inch)0.030~0.110mm(0.00118~0.0043 inch)
    3X0.110~1.600mm(0.0044~0.0630 inch)0.110~0.800mm(0.0043~0.0315 inch)
    1X0.350~5.000mm(0.0138~0.1969 inch)0.400~4.500mm(0.0157~0.1772 inch)
    0.5X0.70~10.000mm(0.02756~0.3937 inch)0.800~9.000mm(0.0315~0.3543 inch)

    For more information , please contact us
