Good at Vibrating object measurement , restore object actual status

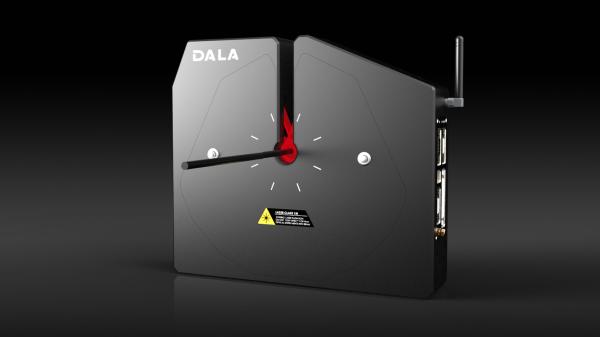

F4010-K operates on the principle of laser diffraction (Fresnel
diffraction), featuring a straightforward design that ensures
stable and accurate measurements over an extended service life.
With an extremely short exposure time of 0.8 microseconds, it
maintains measurement accuracy even on vibrating objects. The fast
sampling frequency of 10 kHz allows for the detection of lumps and
necks on the object.
The 4-axis devices cover a wider area with fewer blind spots,
providing more comprehensive sampling data to accurately reflect
the wire's condition. This makes it highly suitable for
applications with strict ovality requirements.
With a measurement repeatability of ±0.2um, F4010-k is versatile,
applicable to various materials such as electric wire & cable,
steel wire, enamelled copper wire, medical tubing, 3D filament, and
more, regardless of their transparency.
4-axis measurement ,Less bind area

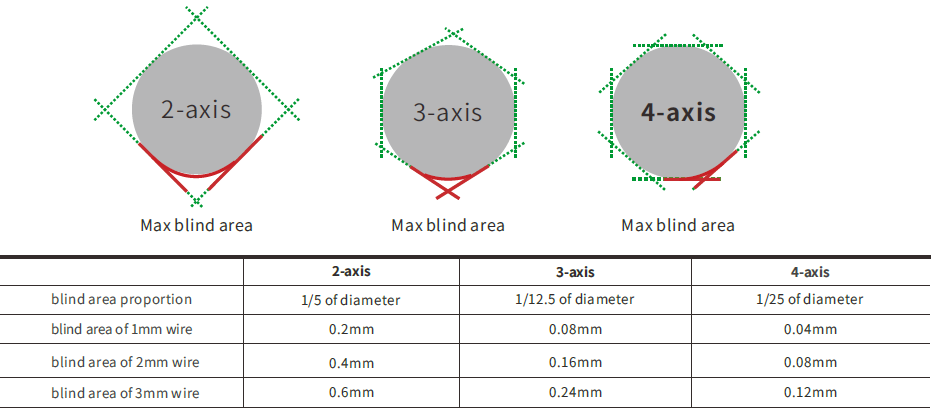

The figure below explains the relationship between the measurement
results and the number of axes. The greater the number of axes, the
fewer the blind spots, resulting in more accurate measurements.
Single axis sampling frequency of 10 KHz
The sampling frequency can reach up to 10 kHz due to the absence of
motor speed limitations, allowing for the collection of more
detailed information about the object being measured.
Touch Screen,Computer,Cellphone
DALA F4010-K can be managed by computer ,cellphone and Touch
screen,like parameter setting ,measurement data management ,
and so on,customers can choose as their application request.
Technical Specification
| Model | F4010-K |
|---|
| Axis | 4-axis |
| Measurement data | diameter and ovality, lump and necks |
| Frequency | 40KHz |
| Measurement range | 0.3~10mm |
| Repeatability(1) | ±0.2μm |
| Accuracy(2) | diameter accuracy:±(0.001+0.01%*D)mm ovality accuracy: ＜0.5mm:±0.004mm ≥0.5mm: ±2(0.001+0.01%*D)mm |
| Min defect height | 0.01mm |
| Min defect length(3) | 0.2mm(wire speed120m/min)
0.8mm(wire speed500m/min) |
| Size | 275*242*60mm |
| Working power source | 24V ±10% 40VA |
| Running temperature | 5℃~50℃ |
| Display | LED display |
| Commuincation port | Standard:WIFI,RS485 MODBUS RTU,CAN
Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT |
| Electrical port | Standard: digital output(relay),digital input,analog input,encoder
pulse input port
Option:PI feedback control (4) |
| Data colletion & analysis | available (option DS14 ZT display and control system,DMS1000) |
| Out-of-tolerance alarm | available |
| Transparent mode | available |
Note:
(1) set sliding window as 100ms, outside diameter repeatability of
φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm
round rod at measurement area
(3) set defect measurement average time as 0ms, the minimum defect
length which cannot be missed at the measurable area
(4) PI feedback control is option, but must order at placing order
