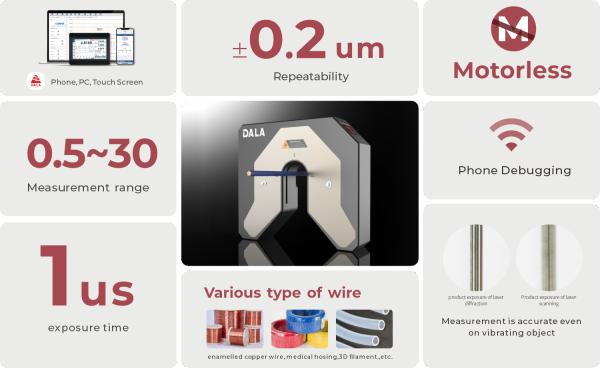

2 Axis Laser Ovality Pipe Diameter Gauge For Electric Wire Cable

Long Durability

The F2030-S leverages a laser diffraction measurement approach, distinguished by its uncomplicated design and high level of precision.

Thanks to its lack of moving parts, the device provides reliable accuracy over a long service life, requiring no calibration.

It is application to electric cables, steel wires, hose and pipe etc.

Applications

Touch Screen,Computer,Cellphone

DALA F2030-S can be managed by computer ,cellphone and touch screen,like parameter setting ,measurement data management ,
and so on.

Technical Specification

Model	F2030-S
Axis	2-axis
Measurement data	diameter and ovality
Frequency	2000Hz (1000Hz/axis)
Measurement range	0.5~30mm
Repeatability⁽¹⁾	±0.2μm
Accuracy⁽²⁾	±(0.001+0.01%*D)mm
Size	28024558mm
Working power source	24V ±10% 40VA
Running temperature	5℃~50℃
Display	LED display
Commuincation port	Standard:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP,EtherCAT
Electrical port	Standard: digital output(relay),digital input,analog input,encoder pulse input port Option:PI feedback control ⁽³⁾
Data colletion & analysis	available (option DS14 ZT display and control system,DMS1000)
Out-of-tolerance alarm	available
Transparent mode	available

Note:
(1) set sliding window as 100ms, outside diameter repeatability of φ1mm round rod at measurement center area
(2) set sliding window as 100ms, outside diameter deviation of φ1mm round rod at measurement area
(3) PI feedback control is option, but must order at placing order
